水下多聯超薄磁力攪拌器能在較廣的范圍內對液體進行精密穩定的攪拌,防水型攪拌器可放入0~60℃的水浴中或者高濕度恒溫箱中工作,特別適合小體積的樣品,是石油、化工、環保、教育科研等的必備工具。

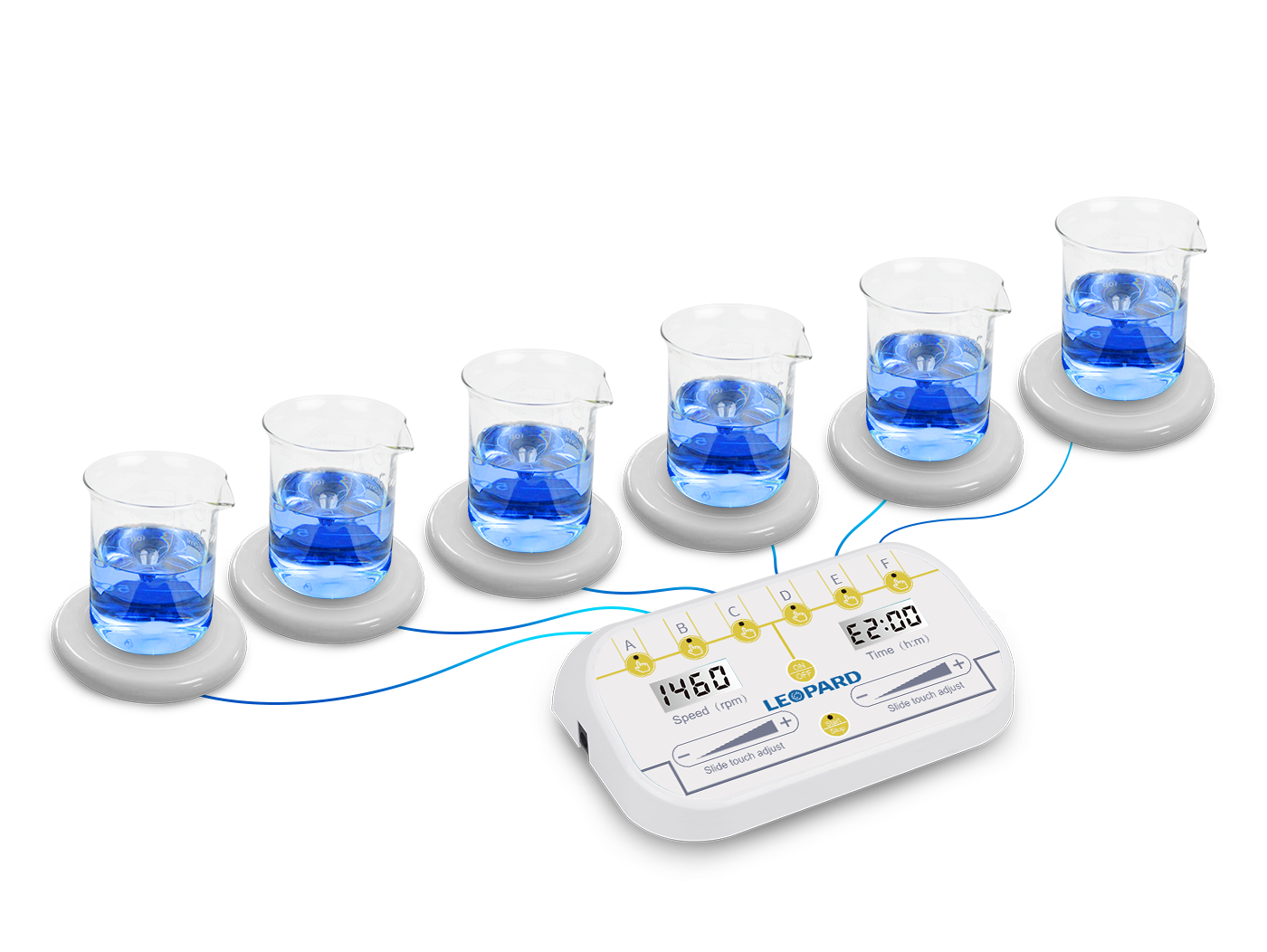

The underwater multi-point ultra-thin magnetic stirrer can precisely and stably stir the liquid in a wide range. The waterproof stirrer can be placed in a water bath of 0 to 60 ℃ or a high humidity constant temperature box to work, especially suitable for small volume sample, is an essential tool for petroleum, chemical, environmental protection, education and scientific research.
產品特點
Features
1. The MS-6C waterproof stirrer can be put into a water bath or work in a high-humidity constant temperature box.
2. MS-6C waterproof stirrer can stir smoothly in a suitable working temperature of 0 ~ 60 ℃.
3. Ultra-light and ultra-thin, novel appearance, compact size, saving experiment space.
4. The controller and the agitator are separated. The number and combination of stirrer can be adjusted arbitrarily, up to 6 stirrer.
5. Using the USB interface connection method, easy to plug and unplug.
6. Each stirrer has a separate speed and time, making it easier to compare experiments.
7. Touch buttons and sliding touch adjustment, durable, novel and fashionable.
8. Advanced wear-free magnetic coil technology, quieter and more stable operation, longer service life.
9. LCD screen real-time display parameters, LED indicator shows working status, the running status of the instrument is more intuitive.
型號 |
MS-6A 控制器 |
MS-6B 攪拌器 |
MS-6C 攪拌器 |
是否防水 |
否 |
否 |
防水型 |
適宜工作溫度范圍 |
室溫 |
室溫 |
0~60℃ |
最大攪拌量(H2O) |
/ |
1L |
1L |
電機輸出功率 |
/ |
4W |
4W |
轉速設置(運行)范圍 |
搭配MS-6B:20~1500rpm(步進10rpm) 搭配MS-6C:20~1000rpm(步進10rpm) |
20~1500rpm |
20~1000rpm |
定時范圍 |
0~9小時(0表示無窮大,步進5min) |
/ |
/ |
顯示方式 |
液晶 |
/ |
/ |
標配攪拌子尺寸 |
/ |
A型 φ8×20mm |
A型 φ8×20mm |
工作盤材質 |
/ |
PVC |
PA66 |
工作盤尺寸 |
/ |
Φ120mm |
Φ120mm |
外形尺寸(寬x長x高) |
W.165×D.105×H.45mm |
W.120×D.120×H.19mm |
W.120×D.120×H.19mm |
重量 |
0.48kg |
0.18kg |
0.27kg |
電源適配器輸入 |
AC100-240V 50/60Hz 60VA |
/ |
/ |
電源適配器輸出 |
DC 24V, 2A |
/ |
/ |
Model |
MS-6A Controller |
MS-6C stirrer |
waterproof |
No |
Yes |
Suitable operating temp. range |
Room temperature |
0~60℃ |
Max. stirring volume(H2O) |
/ |
1L |
Motor output power |
/ |
4W |
Speed setting (running) range |
connecting with MS-6C:20~1000rpm(increment 10rpm) |
20~1000rpm |
Timing range |
0~9 hours(0 means infinity,increment 5min) |
/ |
Display method |
LCD |
/ |
Working plate material |
/ |
PA66 |
Working plate size |
/ |
Φ120mm |
Dimensions (width x length x height) |
W.165×D.105×H.45mm |
W.120×D.120×H.19mm |
Weight |
0.48kgs |
0.27kgs |
Power adapter input |
AC100-240V 50/60Hz 60VA |
/ |
Power adapter output |
DC 24V, 2A |
/ |
